About this item

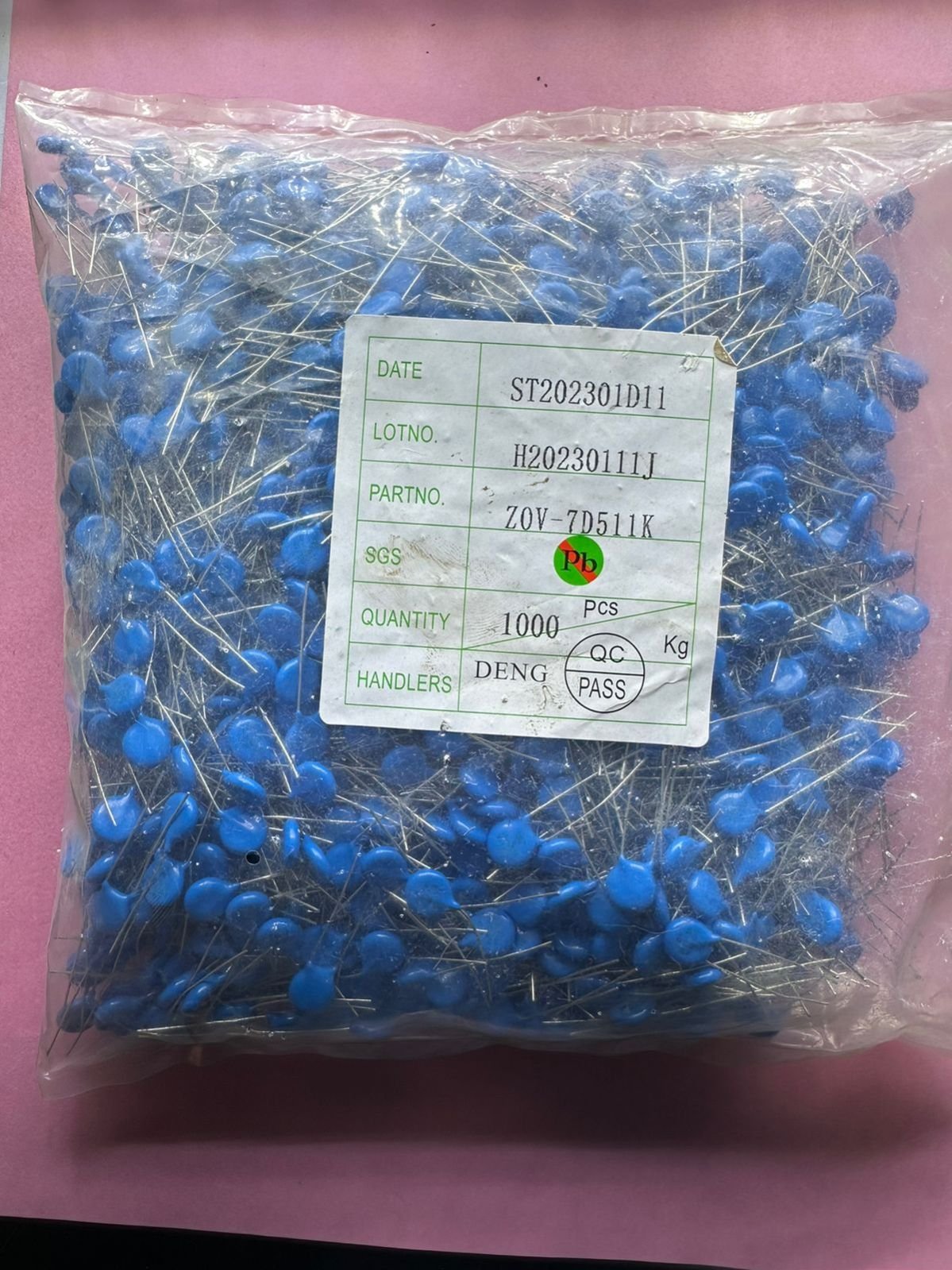

The MOV-10DxxxK Series of 10 mm radial leaded varistor devices protects against overvoltage transients such as lightning, power contact and power induction. The metal oxide varistors provide a choice of varistor voltages from 18 V to 1800 V and Vrms voltages from 11 V to 1000 V. The devices have a high current handling, high energy absorption capability and fast response times to protect against transient faults up to rated limits. Circuit ProtectionSystemPage:1Specifications are subject to change without notice. Metal Oxide Varistors - 10D SeriesFeatures1. Wide operating voltage (V1mA) range from 8V to 1800V.2. Fast responding to transient over-voltage.3. Large absorbing transient energy capability.4. Low clamping ratio and no following-on current.No Radioactive Material Storage Temperature: -55 ºC to +125 ºCOperating Temperature: -55 ºC to +85 ºCBody: Nickel PlatedLeads: Surface-mount, Axial Devices: Tin PlatedDevices with No Leads: Nickel Plated Varistor VoltageThe voltage between two terminals with the specified measuring current 1mA.DC applied is call Vb.To meet the specified value Maximum AllowableVoltageThe recommended maximum sine wave voltage (RMS) or the maximum DC voltage can be applied continuously.Rated WattagetThe maximum average power that can be applied within the specified ambient temperature. IEnergy The maximum energy within the varistor voltage change of ±10% when one impulse of10/1000μsec. or 2 msec. is applied.Withstanding SurgeCurrentThe maximum current within the varistor voltage change of ±10% with the standard impulse current (8/20μsec.) applied one time.Surge LifeThe change of Vb shall be measured after the impulse listed below is applied 10,000 times continuously with the interval of ten seconds at room temperature.
